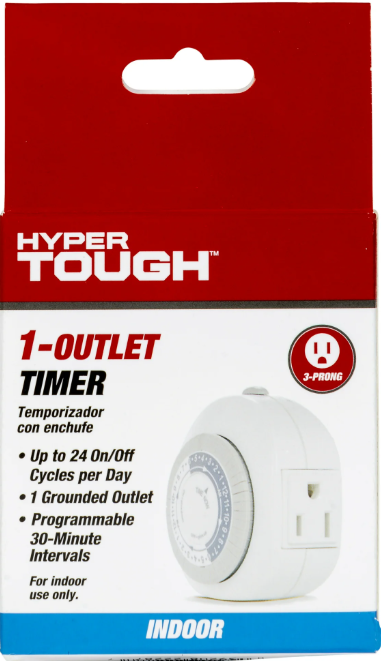

HT1023 / HTV1023 Hyper Tough Indoor Grounded Analog Timer

Features

• 1 grounded outlet
• Programmable in 30-minute intervals (up to 24 ON/OFF cycles per day)
• Easy installation, simply plug-in and set times by pulling pins up (off) and pushing pins down (on)
• Indoor use only
• CFL & LED compatible
• Manual override switch

Setup Instructions

1. Set the Current Time
   Turn the dial clockwise until the current time aligns with the “Time Now” arrow.

   • Dark area = nighttime hours
   • White area = daytime hours

2. Set ON/OFF Periods

   • Pull up all tabs (pins) initially.
   • Push down tabs for the desired ON period (e.g., 6 PM to 10 PM).

3. Connect Appliance
   Plug the appliance into the timer and the timer into a power source. Ensure the appliance is turned on.

4. Manual Override

   • Switch to “OUTLET ON” for continuous power.
   • Switch to “TIMER ON” to resume scheduled control.



 Safety Warnings

• Use only with 125VAC, 60Hz power source.
• Max load: 15A (1875W resistive), 1250W (tungsten).
• Indoor use only.
• Do not use with heating appliances.
• Keep away from children and wet locations.
• Do not disassemble or immerse in liquid.
