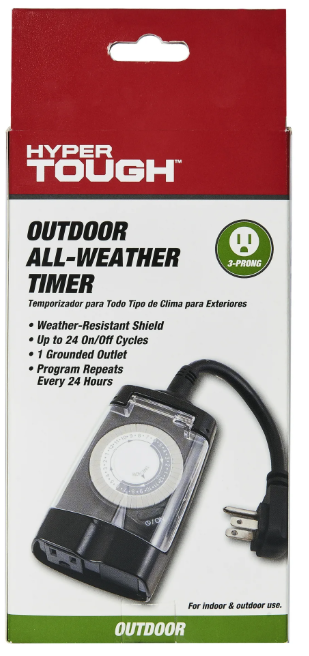

HT1015 / HTV1015 Hyper Tough Outdoor All-Weather Timer

 Features

• 1 grounded outlet
• Weather-resistant latch cover
• Optional wall mounting
• 24-hour analog timer with 30-minute intervals
• 6-inch heavy-duty grounded cord
• Manual timer override switch



Setup Instructions

1. Lift the protective cover to access the timer dial.
2. Set the current time by turning the dial clockwise until it aligns with the “Time Now” arrow.
   • Dark area = nighttime hours
   • White area = daytime hours
3. Set ON/OFF periods:
   • Pull up all tabs (pins).
   • Push down tabs for the desired ON period (e.g., 6 PM to 10 PM).
4. Plug in your appliance and ensure it’s turned on.
5. Mounting (optional): Use the hole on the back to mount the timer vertically.

Safety Warnings

• Use only with 125VAC, 60Hz power source.
• Do not exceed 15A/1875W resistive or 1250W tungsten load.
• Must be plugged into a weatherproof, GFCI-protected outlet if used outdoors.
• Keep away from children and avoid wet locations.
