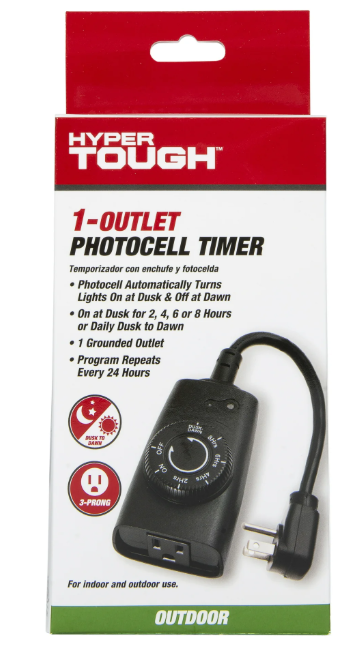

HT2062 Hyper Tough Outdoor Grounded Dusk to Dawn Timer

Features

• 1 Grounded Outlet: For outdoor use.
• Photocell Sensor: Automatically turns power on at dusk.
• Timer Options: Turns off 2, 4, 6, or 8 hours after dusk—or stays on until dawn.
• LED Indicator: Shows power status.
• Wall Mounting: Includes a mounting hole on the back.
• 6" Cord: For flexible placement.

 Setup Instructions

1. Plug-In & Power Source

   • Connect the timer to a 125VAC, 60Hz power source.
   • Only use with GFCI-protected outlets when outdoors.

2. Mounting

   • Use the mounting hole on the back to secure the timer to a wall or post if needed.

3. Photocell Function

   • The built-in photocell detects ambient light and automatically turns the connected device on at dusk.

4. Timer Settings

   • Use the dial to select how long the device stays on after dusk:
     • 2, 4, 6, or 8 hours
     • Or choose “Dusk to Dawn” to keep it on all night.
   • The timer will repeat this cycle daily as long as it remains plugged in.

5. LED Indicator

   • Confirms power is flowing through the timer.

Safety Warnings

• Power Source: Only connect to 125VAC, 60Hz.
• Load Capacity:
  • 10A / 1250W resistive
  • 625W tungsten (lighting)
  • 1/2 HP motor
• Do Not Use With:
  • Appliances exceeding rated capacity
  • Heating elements (e.g., cooking appliances)
• Outdoor Use:
  • Must be plugged into a GFCI-protected outlet
  • Do not expose directly to water
  • Store indoors when not in use
• Maintenance:
  • Unplug before cleaning
  • Wipe with a dry cloth only—do not immerse in water

Problem: Lights blinking on and off.

Solution: The photo eye is really sensitive with light. If the timer is getting some light from a light fixture or sun daylight into the timer photo eye it will trigger the timer to go OFF/ON.

Make sure the photocell is not getting light from another fixture. A bright light nearby will cause the timer to cycle on and off.

Test the photocell by covering it with black electric tape.

If covering the sensor keeps it from blinking then it is definitely the light nearby causing the problem.

An analog timer should work in that case.
