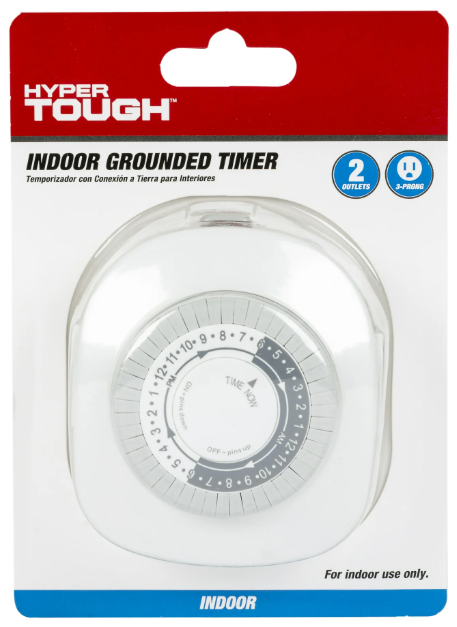

HT1025 / HTV1025 Hyper Tough Indoor Grounded Analog Timer 2 Outlet

 Features

• 2 grounded outlets
• 30-minute programmable intervals
• Up to 24 ON/OFF cycles per day
• CFL and LED compatible
• Manual override switch



Setup Instructions

1. Set the Current Time
   Turn the dial clockwise until the current time aligns with the “Time Now” arrow.

   • Dark area = nighttime hours
   • White area = daytime hours

2. Set ON/OFF Periods

   • Pull up all tabs (pins) initially.
   • Push down tabs for the desired ON period (e.g., 6 PM to 10 PM).

3. Connect Appliance
   Plug the appliance into the timer and the timer into a power source. Ensure the appliance is turned on.

4. Manual Override

   • Switch to “OUTLET ON” for continuous power.
   • Switch to “TIMER ON” to resume scheduled control.



Safety Warnings

• Use only with 125VAC, 60Hz power source.
• Max load: 15A (1875W resistive), 1250W (tungsten), 1/2HP motor.
• Indoor use only.
• Do not use with heating appliances.
• Keep away from children and wet locations.
• Do not disassemble or immerse in liquid.
